Caline CP-05 10 Isolated Output 9V 12V 18V Guitar Effect Pedals Power Supply

Does your pedal board or guitar rig look more like a bird's nest these days, what with all the tangled mess of power cords? Do you find yourself bogarting all the power strips just to practice or play a show? Despair no more! The CP-05 power supply will save the day, providing clean, isolated power for up to ten pedals, tuners, and the various and sundry bits-n-bobbles that it takes to get that perfect guitar tone. Boasting seven 9V outlets each with 100 mA on tap, the CP-05 is ready to tame even the most ambitious pedal board. One additional outlet supplies 9V at 500 mA, for a higher current pedal. You also get one each of 12V and 18V outlets, each with 100 mA, for those ultra-power-hungry monstrosities, multi-effects units, mixers, keyboards, MIDI controllers, small power tools, or whatever the music and the moment calls for.

Features:

• 100% brand new and unused

• Isolated Output 10.

• Isolated Short Circuit/Overcurrent Protected.

• Powers For 9V, 12V or 18V PEDAL.

• Bright Blue LED for Pedal Board Lighting and Short Circuit Indicate.

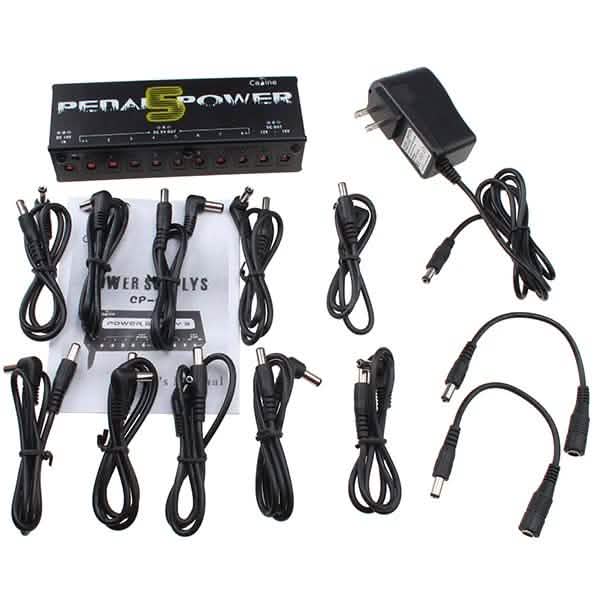

• Includes Cables.
• Net weight: 388g

• Color: black

• Power: AC 110v-240V

• Input: DC 18V
• Dimension: 150 x 50x 30mm
• Output: 7 way 9V 100mA, 1 way 9V 500mA, 1 way 12V 100mA, 1 way18V 100mA

Part Names and Functions:

• Switch for LED lights: Turn the switch towards those LED lights, normally all lights would go on after the power is connected. If you don`t want all LED lights, please turn the switch back. The front panel of this unit has 10 high-brightness LED lights working as indicators, as well as lighting for pedal board.

• DC 18V INPUT: Please plug in the output of power adapter here, and do not use adapter from elsewhere

• OUTPUT 1-7:All DC 9v power output with the maximum volume of 100mA,are suitable for ordinary analog effectors. Under the circumstances of all LED lights on, instantaneous overcurrent in certain output would lead to the corresponding LED light`s flash and the currents of this channel limit to 100mA.That is to say, output 1-7 might not be able to work properly if the connected digital effectors are of larger power consumption, then you need to use output 8.

• OUTPUT 8:Also DC 9V Power output with maximum volume of 500mA,is suitable for digital effectors and DC 9V low-power digital guitar amplifiers. When instantaneous overcurrent occurs in this channel, the corresponding LED light would be flashing and the currents limit to 500mA.

• DC12 OUTPUT: The maximum output current is 100mA,When instantaneous overcurrent occurs in this channel, the corresponding LED light would be flashing and the currents limit to 100mA.

• DC18 OUTPUT: The maximum output current is 100mA.When instantaneous overcurrent occurs in this channel, the corresponding LED light would be flashing and the currents limit to 100mA.
