Description
xSPECIFICATIONS
AC Output Frequency: 50Hz/60Hz ±2Hz
AC Output Socket: Universal Socket
AC Output Voltage: 220V/110V±15%
Application: Solar Power Storage
Battery Capacity: 12.8V 76.8Wh
Battery Type: LiFePO4
Brand Name: GaiaRay
Certification: CE,FCC,UL
DC Output Voltage: DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521
Display screen: Yes
Feature 1: 100W portable power bank
Feature 2: Solar Generator
Feature 3: Solar portable power station
Feature 4: Emergency Power Plant
Feature 5: UPS Charging Station
Feature 6: Portable charging station
Feature 7: Fast charging power station
Feature 8: Mobile phone laptop charger
High-concerned chemical: none
Model Number: Portable Power Station
Nominal Capacity: 76.8Wh,76.8Wh
Origin: Mainland China
Output Waveform: Modified Sine Wave
Rated Power: 100W
Set Type: Charger Sets
Size: 160*100*143
Type: LiFePO4
100W Portable Power Station 76.8Wh Solar Generator LiFePO4 Battery Charging Station AC 110V 220V UPS With LED Light For Camping
Specification:
Rated power: 100W
Output waveform: correction wave
AC output voltage: 220V/110V ±15%
AC output frequency: 50Hz/60Hz ±2Hz
Conversion efficiency: maximum value>90%
Charging interface: external charger interface and solar panel charging interface DC5521*1 (built-in solar intelligent controller)
AC output socket: universal seat
DC output voltage: DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521
LED light: The LED light is high on, the LED light is half on, the LED light flashes, and the LED light is turned off in 4 states

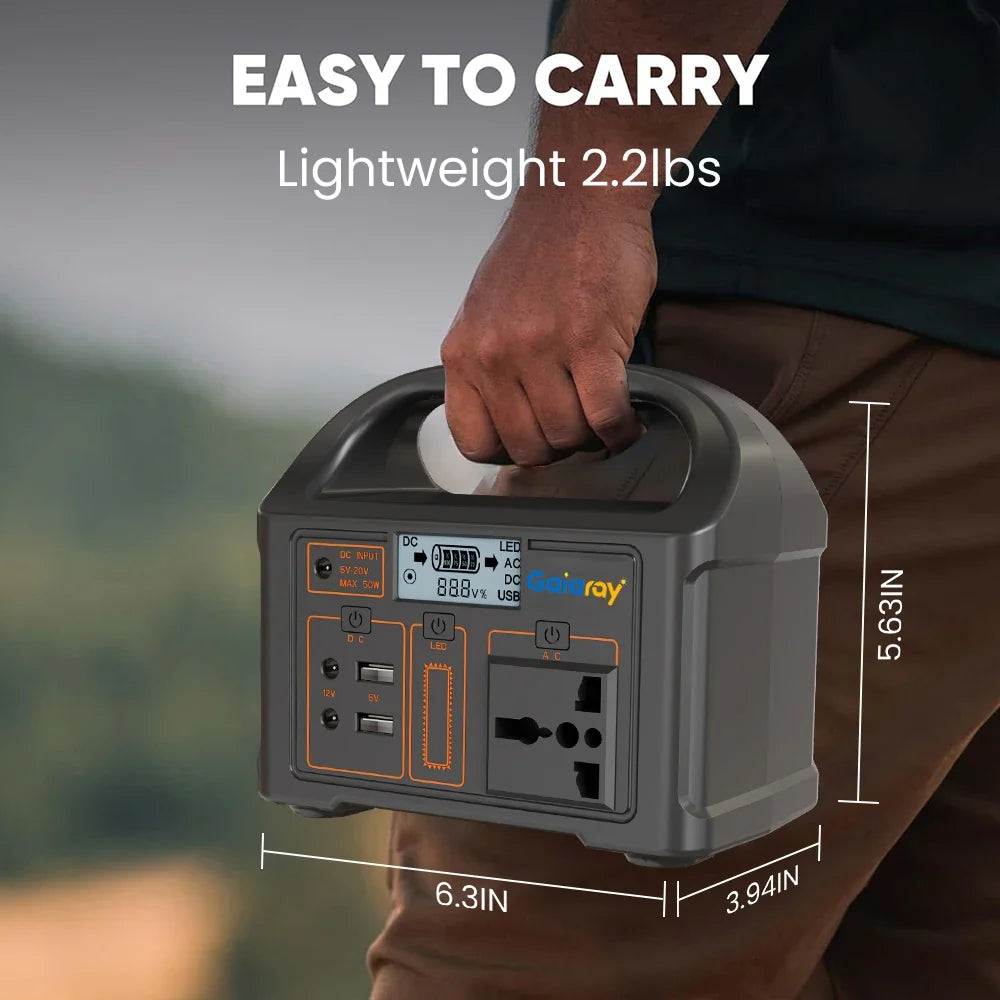

Product Size W*D*H(mm) :160*100*143
Net weight: 1kg

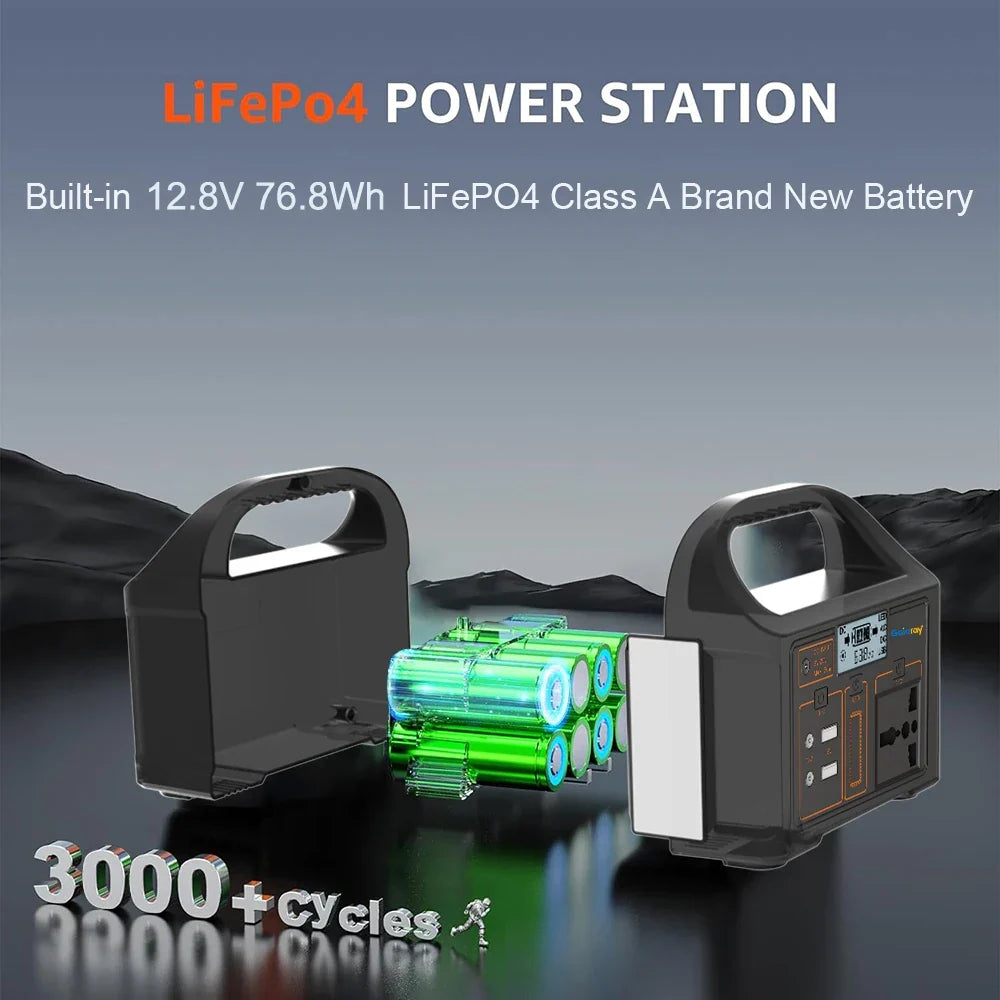

LiFePO4 battery:
2000+ cycles : approximately equal to 10 years of full capacity use
Safety: Short circuit is not easy to cause fire and explosion
Durability: Long battery life
High temperature resistance: the peak electric heating reaches 350-500°C
Environmental protection: generally considered to be free of heavy metals and less polluted than rare metals
3 charging methods: indoor and outdoor flexible energy replenishment, MAINS charging, car charging, solar charging
Product Features：
1. Large Capacity & Versatile Use: With a substantial 76.8Wh capacity, the portable solar power station caters to a wide array of situations, from outdoor camping and self-driving tours to fulfilling household emergency needs during power outages. Stay powered up anywhere, anytime.
2. High Quality Lithium Iron Phosphate Battery: The power generator is equipped with a Lithium Iron Phosphate battery that guarantees over 2000+ charge cycles. This high-quality power battery pack ensures a longer lifespan and safer use.
3. Compact and Powerful: Improved over other products on the market, the outdoor camping power bank boasts a smaller volume and lighter weight while maintaining powerful functionality. It can power a variety of electronic devices, making it a convenient and reliable choice for outdoor use.
4. LED Lighting & Diverse Output: The outdoor power supply features LED lighting with four modes: high brightness, half brightness, flashing, and off. It provides a DC5V 2.4A dual USB output and a DC12V3A dual DC5521 output, catering to electronic and outdoor equipment, offering significant convenience.
5. Safe and Efficient: The portable outdoor generator prides itself on safety and efficiency. It provides fast charging and includes multiple safety protections, ensuring reliability and durability for outdoor use.
Package List：
100W Power Station*1
Charger (EU/US/UK plug optional)*1
Product Manual*1
Rated Power |
100W |
Output Waveform |
Modified Sine Wave |
AC Output Voltage |
220V/110V±15% |
AC Output Frequency |
50Hz/60Hz ±2Hz |
Conversion Efficiency |
Maximum Value>90% |
Charging Interface |
External Charger Port and Solar Panel Charging Port DC5521*1 (Built in solar intelligent controller) |
AC Output Socket |
Universal Socket |
DC Output Voltage |
DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521 |
LED Light States |
LED bright, half-bright, flashing, LED off 4 states |
Battery Type |
LiFePO4 |
Battery Capacity |
12.8V 76.8W |
Charging Current |
Maximum Value 2A |
AC Charger Specifications |
5V 2A universal mobile phone charger (prepared by user) |
Charging Time |
After full discharge, the battery capacity reaches 80% after 10 hours of charging |
LCD |
Battery Capacity, Battery Voltage, State of Charge, State of Discharge |
Heat Dissipation |
Automatic cooling |
Protection Functions |
Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit |
Operating Ambient Temperature |
-10～40℃ |
Operating Environment Humidity |
10～85% |
Storage Ambient Temperature |
—20～70℃ Without Condensation |
Storage Environment Humidity |
5～90% |
Structural Characteristics |
ABS Fireproof Enclosure |
Net Weight(kg) |
≈1kg |
Product Size W*D*H(mm) |
160*100*143 |
⚡【Frequently Asked Questions】
Q1: What devices can the 500W power station charge?
A: The 100W power station can charge/power devices with a power rating below 100 watts. The total power consumption of all connected devices must also remain below 100W. If power demand exceeds this limit, the power station will enter protection mode and automatically shut off. Always verify device specifications before purchase.
Q2: How do I calculate device runtime?
A: Use this formula: Runtime = 76.8Wh ÷ Actual Device Power Consumption. For example, a device consuming 20W will run approximately 3.8 hours. Note that actual power consumption may vary depending on usage scenarios.
Q3: How long does it take to fully charge the power station?
A: Charging via an AC power outlet takes approximately 5 hours. Using a 50W solar panel (sold separately) takes about 6 hours.
Q4: Can the power station charge while in use?
A: Yes, the power station supports UPS functionality. It can supply power to other devices while simultaneously charging itself.
Q5：About shipping
A：Orders ship immediately from Europe or China, with fast delivery estimated within 5-20 days.
