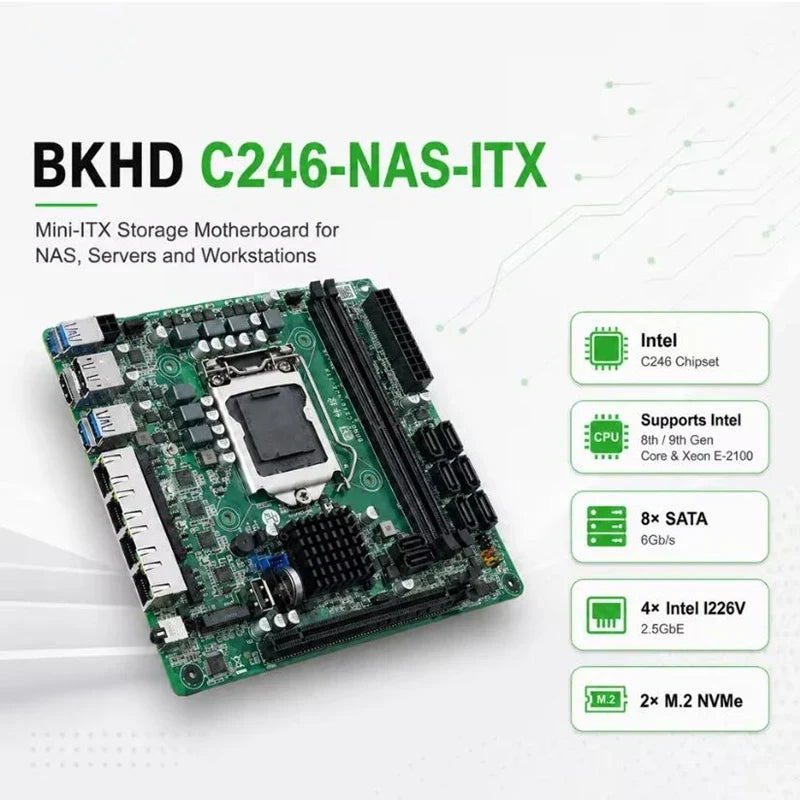

The C246-NAS-ITX motherboard is designed for NAS storage servers, home labs, small business storage, and professional workstation applications.
With 8 native SATA ports, 2 M.2 NVMe slots, 4 Intel 2.5GbE LAN ports, and ECC memory support, it provides a powerful and reliable platform for building a high-capacity storage server.

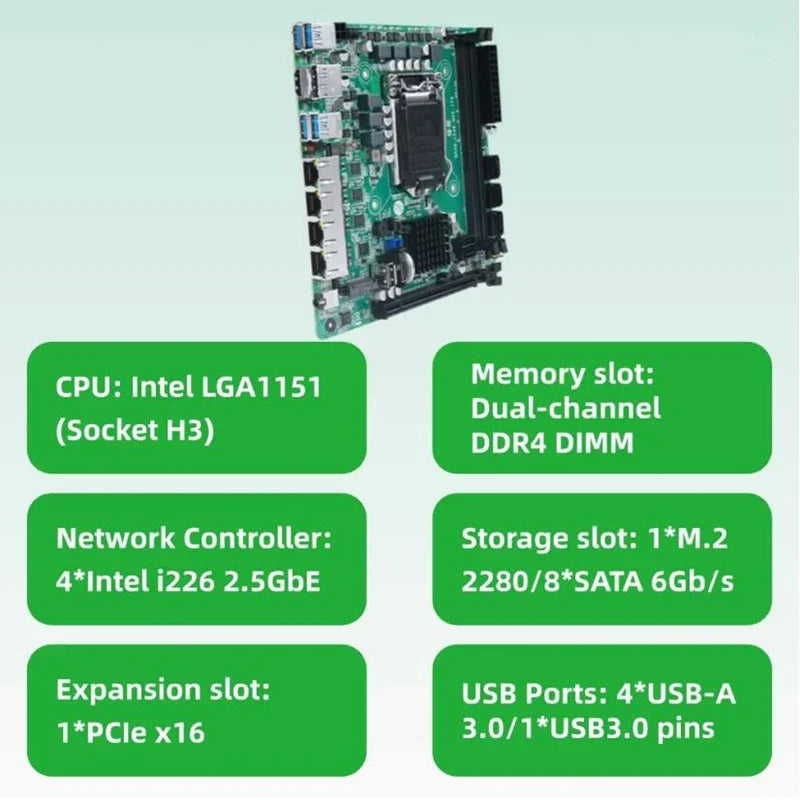

Chipset: Intel® C246

• Processor Support: Intel® Xeon® E-2100 E-2200 Series, Core™ 8-9th Gen, Pentium® (FCLGA1151)

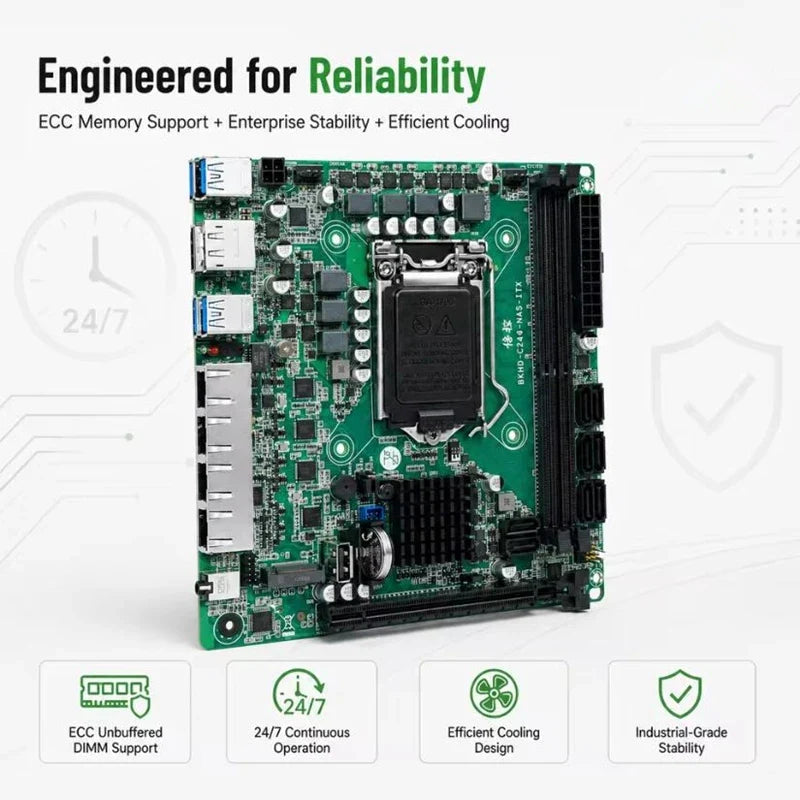

• Memory: 2xDDR4 Non-ECC or ECC Unbuffered DIMM, up to 64GB (2666 MT/s), support ordinary desktop memory and pure ECC memory, DO NOT support server memory

• Storage: 8× SATA 6Gb/s, 2× M.2 Key-M 2280 (PCIe 3.0)

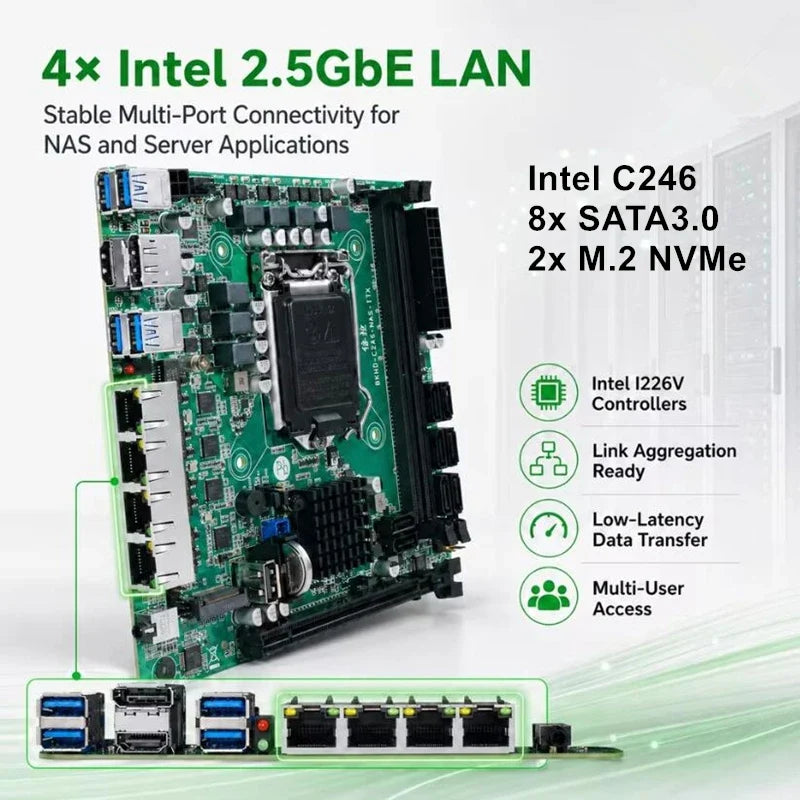

• Networking: 4× 2.5GbE LAN (Intel I226V)

• Display: 1× HDMI, 1× DP (depends on CPU integrated graphics)

• USB Ports: 4× USB-A 3.0 (rear), 1× USB-A 2.0 (onboard), F_USB expansion headers

• Audio: Realtek ALC897, 1× Line-Out jack

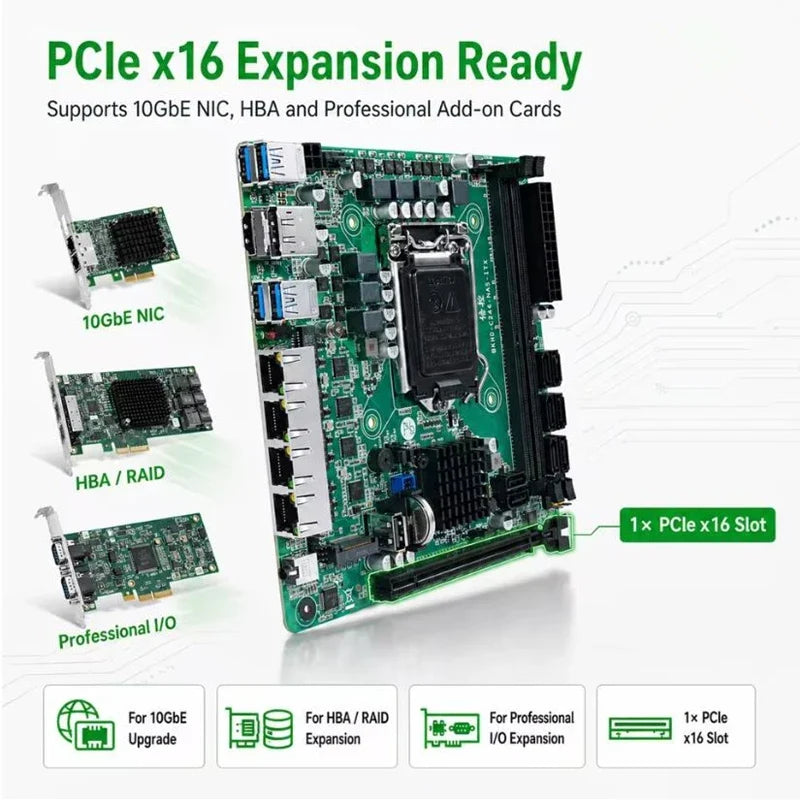

• Expansion: 1× PCIe x16 (Gen3) for 10G NIC, HBA card, RAID card or GPU card etc

• Cooling: 1× CPU_FAN, 2× SYS_FAN

• Power: ATX 24-pin + 4-pin

• Form Factor: Mini-ITX 170 × 170 mm

• Environment: Operating -10–60℃; Humidity 10–90% RH (non-condensing)
